Descrizione

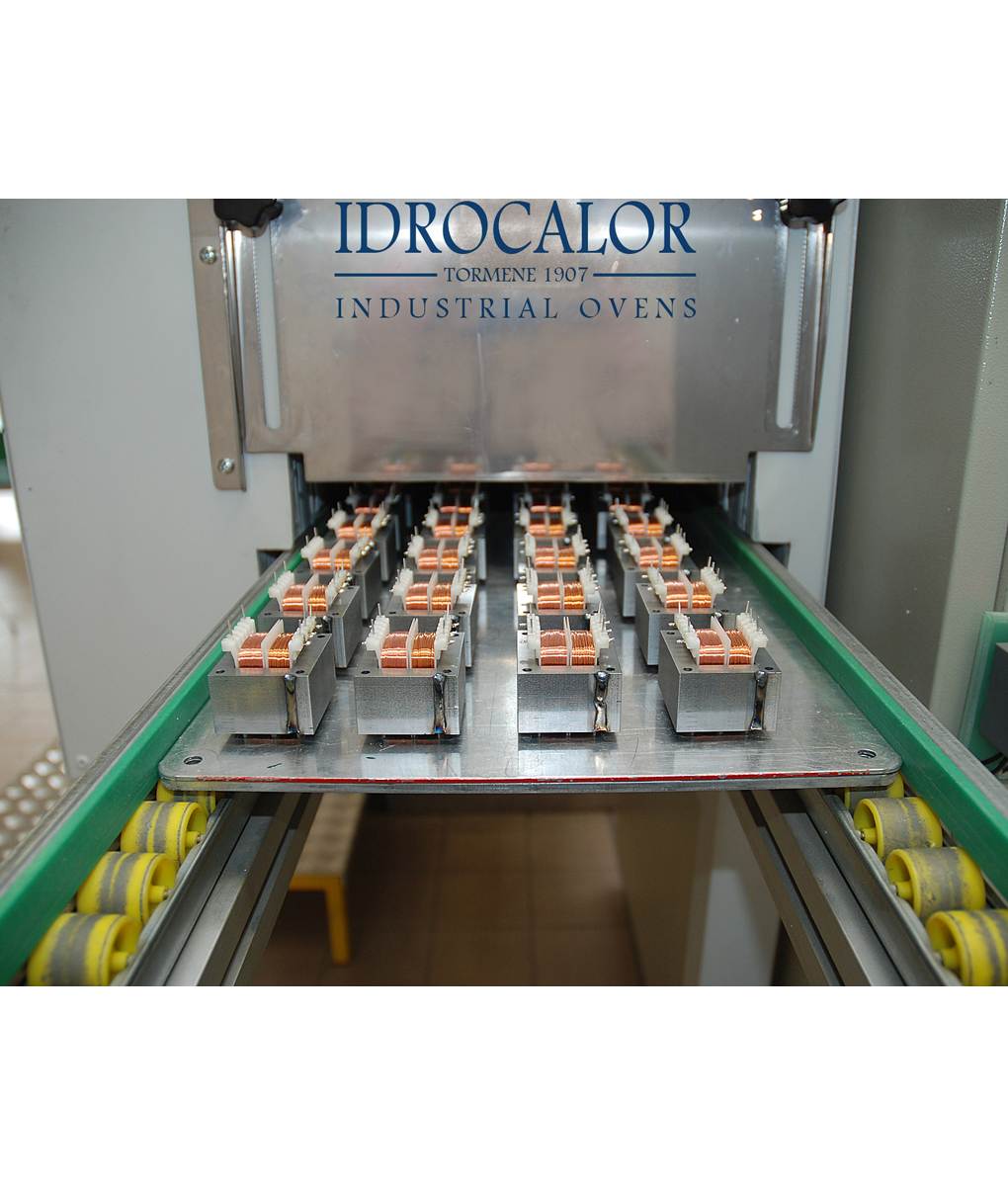

Continuous Ovens for Transformers – Industrial Ovens made in Italy by Idrocalor srl.
IDROCALOR’ovens are widely used in the drying treatments of dry-type, oil filled and cast resin transformers. The reliability and efficiency of our drying ovens assures the transformer’s highest performances and its long-lasting life. The working temperature range in this application goes from 80° to 160° C. The key factor for a high quality treatment resides in a masterful control of the air temperature uniformity. A bad management of airflow and temperature inside the oven could lead to undependable results. Idrocalor’s ovens, thanks to a constant temperature monitoring and a top-notch temperature uniformity, allow a reliable and predictable result for each batch.
TECHNICAL PARAMETERS:
Working Temperature 80-160 °C
Power supply Electric or Gas
Heat Generator Power From 6 to 250 kW
Internal fans Up to 4x 7,5kW
Inside material AISI 430, AISI 304 or Galvanized steel
Process controller Siemens PLC or temperature regulator
USEFUL DIMENSIONS:
Height [mm] up to 6000 mm
Width [mm] up to 6000 mm
Lenght [mm] up to 12000 mm
Door opening Manual leaf door, vertical automatic door
Trolley Manual, pneumatic or electric
OPTIMIZED AIRFLOW:
Each IDROCALOR’s oven features a fully costumizable air-flow to allow the best heating for the transformers.
The air ducts are costum-made and some of the air-flow settings are also changeable by the Costumer to better suit different products.
An example of an air-flow type can be seen on the image on the left.
The ovens can also feature different type of door openings: vertical electric doors, manual double leaf doors and horizontal doors.
Heat generation can be performed using energy from different means: gas, electricity, steam and diathermic oil.
